Series 90 Windows for Replacement

Available Styles

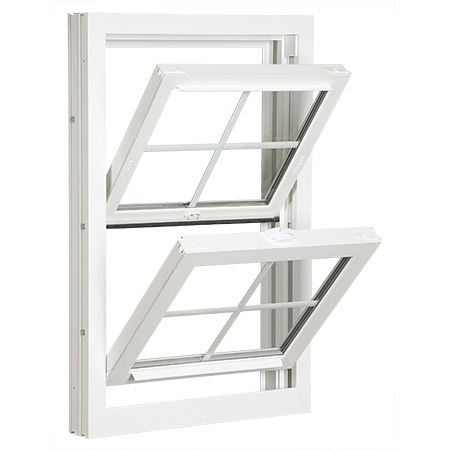

Double Hungs

Feature Sheet

2 and 3 Lite Sliders

Feature Sheet

Standard Features

• Exclusive InsulKor™ polyurethane fiberglass-enriched sash reinforcement for superior thermal and structural performance
• DP 60 rating (window size tested 36″ x 74″)
• Low-E glass with argon gas keeps indoor temperatures comfortable and consistent
• External accessory groove accommodates nail fin option
• Full interlocking lock and meeting rail
• Beveled mainframe offers a classic exterior appearance
• Fusion-welded sashes and frame add strength and boost thermal performance
• Dual low-profile, positive-action cam locks increase security (2 locks standard at 27-1/4″ or wider)
• 3/4″ constant force coil balance permits easy sash movement
• Sloped sill reduces air infiltration and allows for easy water runoff
• Rubber bulb seal helps block outside air
• Dual push-button night latches provide optimum ventilation
• Full screen is supported by a strong extruded aluminum frame*
• Full vinyl sash dam on sill and high-performance weather stripping protect against air infiltration
• Integrated, slim-line lift rail allows for smooth sash operation
• 4-1/4″ frame thickness enhances appearance as well as structural integrity
• Jamb depth is 3-1/4″
• Transferable Limited Lifetime Warranty
• Lifetime Glass Breakage Warranty ensures the longevity of your windows

Series 90 Slider Window Specific Features:

• Integrated glide channel for easy sash opening and closing
• Tandem rollers ride easily along friction-free glide channel
• Available in 2-lite and 3-lite configurations
• 3SL Available in 1/4-1/2-1/4 or 1/3-1/3-1/3 configurations
• XX 2-lite configuration (both sashes operate)

* Screens are not meant to restrain a child from falling through an open window.

Available Options

Color Options

Vinyl Color Options

White

Almond

---

Laminated Color Options

Light Oak

Cherry

Dark Oak

---

Painted Color Options

Black

Brick Red

Bronze

Clay

Dark Chocolate

Gray

Hunter Green

Tan

Terratone

---

Note: Device/Monitor screen settings may affect color shown. Please refer to actual window sample when selecting colors. Laminates and exterior painted options available on select products, if they are not shown above they are not available on this product. Interior and exterior laminates available on white window only. Only use mild, water based household cleaner on painted product and rinse immediately with water. See full cleaning instructions for details. Grid offering limited to 5/8” contoured or SDL on exterior painted windows.

Grid Options

Grid Types

5/8-Inch Flat Grid

3/4-Inch Flat Grid

5/8-Inch Contoured Grid

1-Inch Contoured Grid

Simulated Divided Lite (SDL) Grid

---

Grid Patterns

Colonial

Diamond

Perimeter Prairie

Prairie

Valance

Glass Options

• Low-E Glass
• Ultra Low-E Glass with argon gas
• Triple-pane, R-5 compliant glass with Low-E Glass with argon gas or Ultra Low-E Glass with argon gas
• Obscure, tempered or double-strength glass

Additional Options

• Window Opening Control Device (WOCD) to prevent falling from a window (factory applied)
• InsulKor™ multi-cavity foam-filled frame
• Nail fin accessory for use in remodeling or new construction applications
• Factory mulling of twins and triples
• Additional lock colors to complement any interior color
• Clear View Screen Mesh
• Heavy Duty Screen Mesh
• FlexScreen—the World’s most flexible screen
• Custom sizes available
