Series 130 Windows (Florida) for New Construction and Replacement

Available Styles

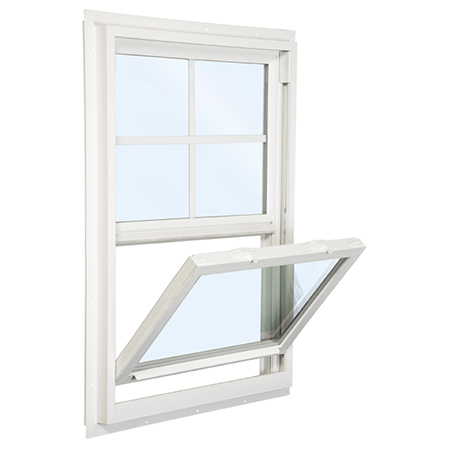

Series 130 Single Hung Window

Feature Sheet

Series 130 Slider Window

Feature Sheet

Standard Features

• Select from 4 frame types:
  – Box Frame (no nail fin & no front flange)
  – J-Channel (nail fin & front flange)
  – Nail Fin Only (no J-Channel)
  – Front Flange Only
• Bottom sash tilts in for easy cleaning from inside
• Aluminum half screen comes standard*
• Block and Tackle balance system for easy sash movement
• Warm-edge spacer system provides energy saving thermal performance
• DP 50 rating (window size tested 53″ x 77″)
• Aluminum reinforcement standard in lock & meeting rails and sash stiles
• Dual sweep locks (standard at 27-1/4″ and above) help provide a weather-tight seal and added security
• Dual weather-stripping helps block air and water infiltration, keeping harsh elements outside and energy-saving comfort inside
• Step sill design combines water run-off and aesthetic features of a sloped sill with the structural strength and internal drainage system of a pocket sill
• Jamb depth: 3″
• Limited Lifetime Warranty

Series 130 Slider Window Specific Features:

• DP 50 rating (window size tested 74″ x 50″ for 2-Lite and 108″ x 50″ for 3-Lite)
• DP 40 rating (window size tested 74″ x 63″ 2-Lite)
• DP 30 rating (window size tested 108″ x 63″ 3-Lite)
• Step sill design combines water run-off and aesthetic features of a sloped sill with the structural strength and internal drainage system of a pocket sill
• Tandom rollers ride easily along friction free channel
• Available in 2-lite and 3-lite configurations

* Screens are not meant to restrain a child from falling through an open window.

Available Options

Color Options

Vinyl Color Options

White

Almond

Clay

---

Laminated Color Options

Bronze Exterior

Black Exterior

---

Painted Color Options

Black

Brick Red

Bronze

Clay

Dark Chocolate

Gray

Hunter Green

Tan

Terratone

---

Note: Device/Monitor screen settings may affect color shown. Please refer to actual window sample when selecting colors. Laminates and exterior painted options available on select products, if they are not shown above they are not available on this product. Interior and exterior laminates available on white window only. Only use mild, water based household cleaner on painted product and rinse immediately with water. See full cleaning instructions for details. Grid offering limited to 5/8” contoured or SDL on exterior painted windows.

Grid Options

Grid Types

5/8-Inch Flat Grid

3/4-Inch Flat Grid

5/8-Inch Contoured Grid

1-Inch Contoured Grid

Simulated Divided Lite (SDL) Grid

---

Grid Patterns

Colonial

Diamond

Perimeter Prairie

Prairie

Glass Options

• Low-E Glass
• Low-E Glass and argon gas for additional efficiency
• Ultra Low-E Glass and argon gas
• Non-reflective Low-E Glass and Non-reflective Low-E Glass with argon gas
• Double strength and obscure glass

Additional Options

• Oriel style (Single Hung Only)
• Window Opening Control Device (WOCD) to prevent falling from a window (factory applied) (Single Hung Only)
• Factory mulling and factory prepared mulling
• Fiberglass half screen
• Charcoal aluminum half screen
• Commodity sizing available
• Custom sizes available
